The Beerbarian Malt Mill

The Assembled Malt Mill

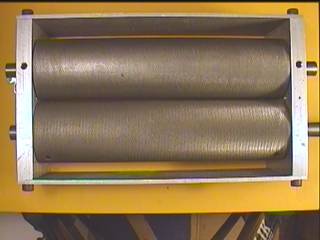

Top view with the mill put together.

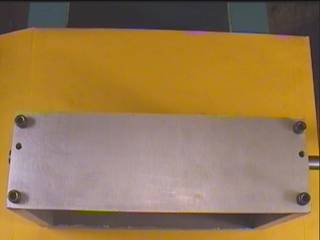

Assembled side view. (Eccentric Side)

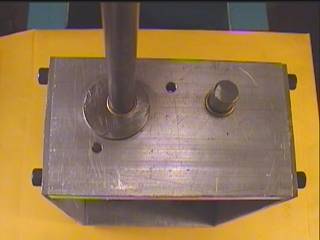

Assembled end view.  On this end the axle the crank handle attaches to is protruding.  Also, notice I am using the live roller in the eccentrics, and the dead roller is in the fixed bearings. I tried them both ways and the rollers seem to operate better setup this way.

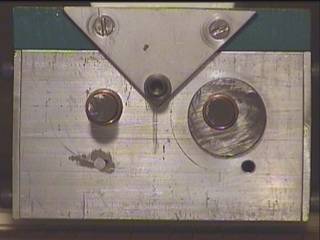

Other end side view with draft plate attached.
